PRODUCT DETAILS
|
Description: | F56 | Zipscreen - Lock End Cap Set (2 piece) | F72 | Zipscreen - Lock End Cap Set (2 piece) |
Code: | RE20-0303-xxx002 | RE15-0512-xxx000 |
Pack Size: | 10|200 SET | 5|200 SET |
Color / Finish: | Black (050), White (069) | Black (050), White (069) |

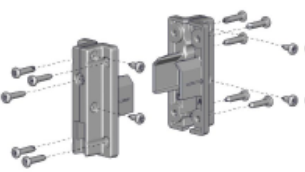

Image: |
| |
Use With: | F56 Weight Bar (RE15-0101), Zipscreen Ultra-Lock V2 (RE15-0422) 7mm Fabric Spline w/ 15 mm Tail (SB91-0409) | F72 Multi-Bar (RE15-0112) Zipscreen Ultra-Lock V2 (RE15-0422) 7mm Fabric Spline w/ 15 mm Tail (SB91-0409) |
Transitioning: | January 2020 | January 2020 |
Replacing: | RE20-0302-xxx001 (while supplies last) | RE15-0512-xxx000 (while supplies last) |
The 2-piece end cap provides the ability to retain the fabric in the lower corners, ensuring a premium finish to the fabric screen.
Production / Installation Improvements
- Pair parts engraved with 'A' with 'B' together
Functional Benefits
- When used in conjunction with 7mm Fabric Spline, the 2-piece design allows for increased zip engagement in the Zipscreen Inner Rail
- Additional screws provide the ability to retain the fabric in the lower corners, ensuring the fabric remains locked to the weight bar and preventing movement
- Both end caps are compatible with new Zipscreen Ultra-Lock V2
Aesthetic Features
- Consistent aesthetics with current componentry
